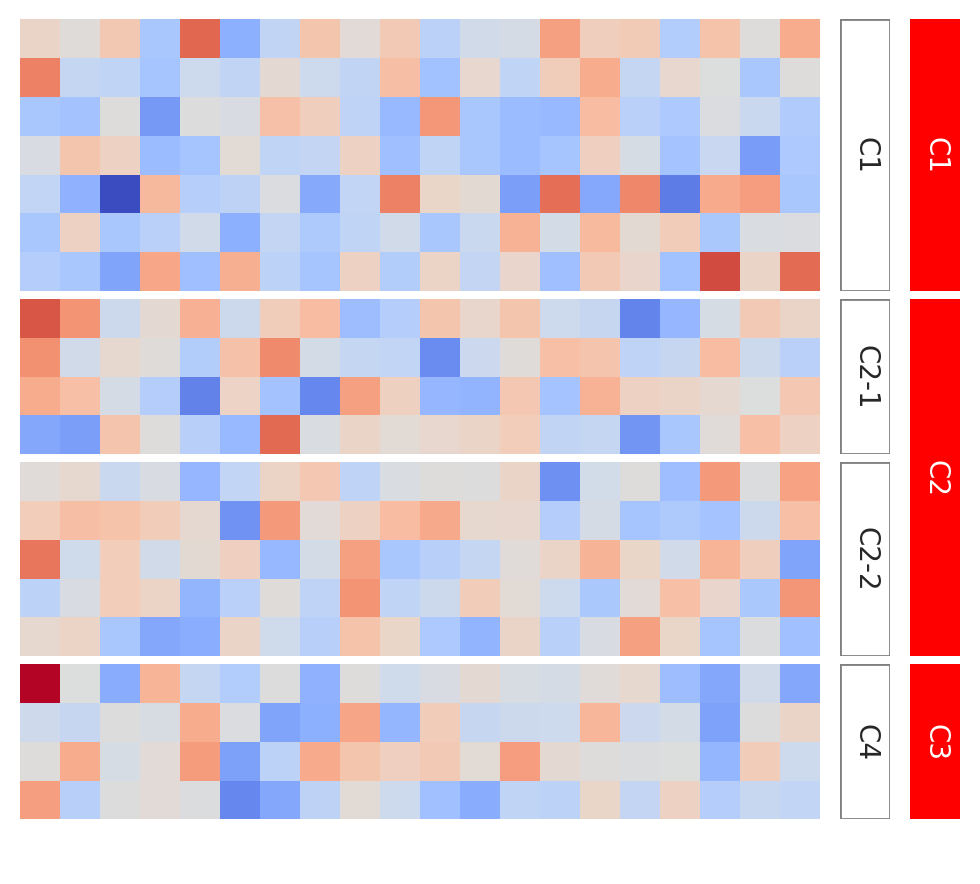

FixedChunk

/home/docs/checkouts/readthedocs.org/user_builds/marsilea/checkouts/v0.4.4/docs/examples/Plotters/plot_fixed_chunk.py:18: DeprecationWarning: `hsplit` will be deprecated in v0.5.0, use `cut_rows` or `group_rows` instead
  h.hsplit(labels=labels, order=chunk)

import numpy as np
import marsilea as ma
from marsilea.plotter import FixedChunk

matrix = np.random.randn(20, 20)

h = ma.Heatmap(matrix)
chunk = ["C1", "C2-1", "C2-2", "C4"]
labels = np.random.choice(chunk, size=20)
h.hsplit(labels=labels, order=chunk)
h.add_right(FixedChunk(chunk, bordercolor="gray"), pad=0.1)
h.add_right(
    FixedChunk(
        ["C1", "C2", "C3"],
        fill_colors="red",
        ratio=[1, 2, 1],
    ),
    pad=0.1,
)
h.render()
