marsilea.plotter.Title

class marsilea.plotter.Title(title, align='center', padding=10, fontsize=None, fill_color=None, bordercolor=None, borderwidth=None, borderstyle=None, **options)

Bases: _LabelBase

Add a title

Parameters:

titlestr

The title text

align{‘center’, ‘left’, ‘right’, ‘bottom’, ‘top’}

Where the title is placed

paddingfloat

The buffer space between text and the adjcent plots, in points unit

fontsizeint, default: 12

The title font size

rotation

optionsdict

Pass to matplotlib.text.Text

See also

marsilea.base.WhiteBoard.add_title()

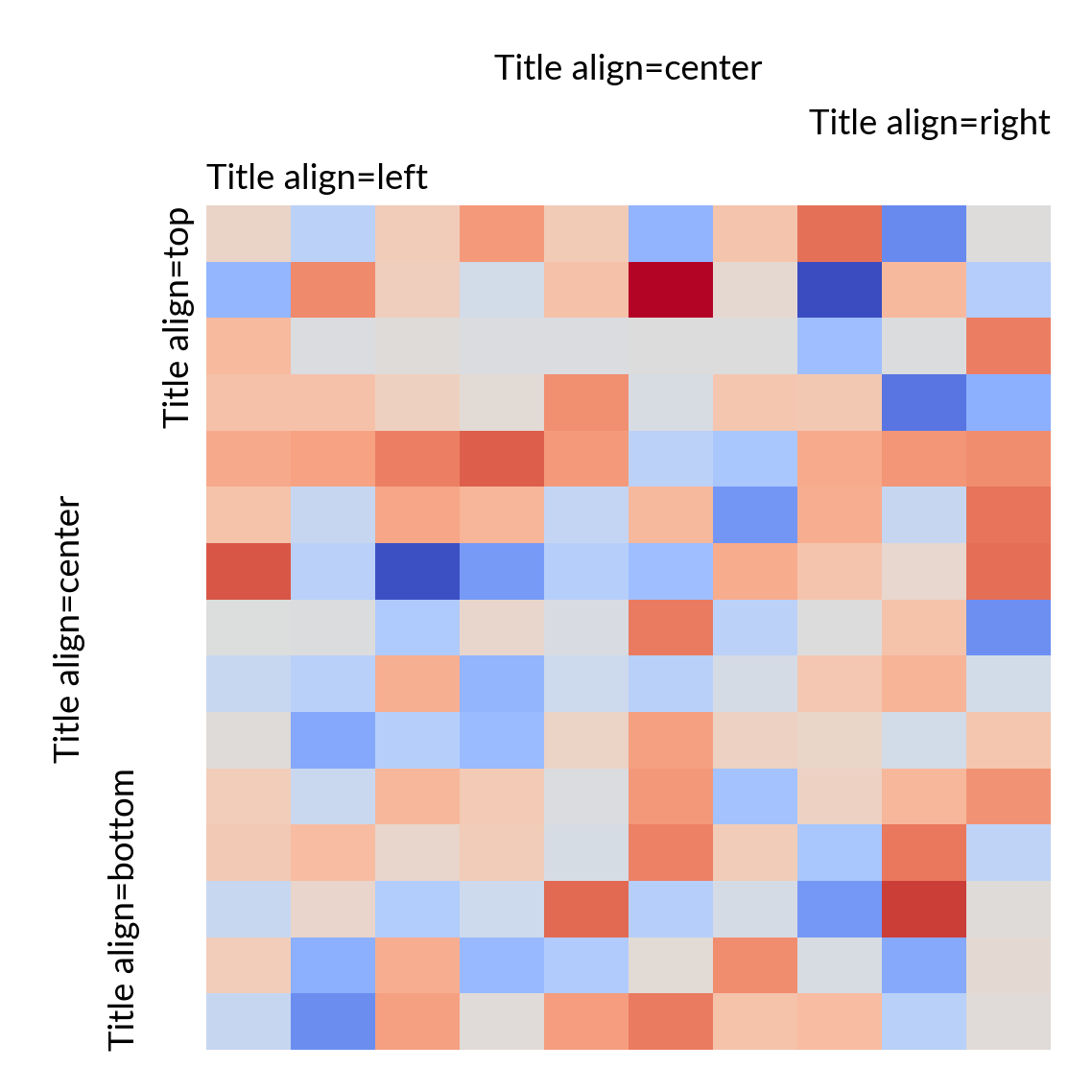

Examples

>>> import marsilea as ma
>>> from marsilea.plotter import Title
>>> matrix = np.random.randn(15, 10)
>>> h = ma.Heatmap(matrix)
>>> for align in ["left", "right", "center"]:
...     title = Title(f'Title align={align}', align=align)
...     h.add_top(title)
>>> for align in ["top", "bottom", "center"]:
...     title = Title(f'Title align={align}', align=align)
...     h.add_left(title)
>>> h.render()

align_pos = {'bottom': 0, 'center': 0.5, 'left': 0, 'right': 1, 'top': 1}

allow_split = False

default_rotation = {'bottom': 0, 'left': 90, 'right': -90, 'top': 0}
