marsilea.base.ClusterBoard

class ClusterBoard(cluster_data, width=None, height=None, name=None, margin=0.2, init_main=True)

Bases: WhiteBoard

A main canvas class that can handle cluster data

Parameters:

cluster_datandarray

The cluster data

widthfloat, optional

The width of the main canvas in inches

heightfloat, optional

The height of the main canvas in inches

namestr, optional

The name of the main canvas

marginfloat, 4-tuple, optional

The margin of the main canvas in inches

init_mainbool, optional

If True, the main canvas will be initialized

See also

WhiteBoard

add_dendrogram(side, method=None, metric=None, linkage=None, meta_linkage=None, add_meta=True, add_base=True, add_divider=True, meta_color=None, linewidth=None, colors=None, divider_style='--', meta_ratio=0.2, show=True, name=None, size=0.5, pad=0.0, get_meta_center=None, rasterized=False)

Run cluster and add dendrogram

Note

1. method and metric only works when you add the first row/col dendrogram.

2. If add_meta=False and add_base=False, the dendrogram axes will not be created.

Parameters:

side

methodstr

See scipy’s linkage

metricstr

See scipy’s linkage

linkagendarray

Precomputed linkage matrix. See scipy’s linkage for specific format.

meta_linkagendarray

Precomputed chunk-level linkage matrix. See scipy’s linkage for specific format.

add_metaNone | bool

By default, add_meta is set to False if the linkage is provided, otherwise True. If the data is split, a meta dendrogram can be drawn for data chunks. The mean value of the data chunk is used to calculate linkage matrix for meta dendrogram.

add_baseNone | bool

By default, add_meta is set to False if the linkage is provided, otherwise True. Draw the base dendrogram for each data chunk. You can turn this off if the base dendrogram is too crowded.

add_dividerbool

Draw a divide line that tells the difference between base and meta dendrogram.

divider_stylestr, default: “–”

The line style of the divide line

meta_colorcolor

The color of the meta dendrogram

meta_ratiofloat

The size of meta dendrogram relative to the base dendrogram

linewidthfloat

The linewidth for every dendrogram and divide line

colorscolor, array of color

If only one color is specified, it will be applied to every dendrogram. If an array of color is specified, it will be applied to each base dendrogram.

showbool

If False, the dendrogram will not be drawn and the axes will not be created.

namestr

The name of the dendrogram axes

sizefloat

padfloat

get_meta_center: callable

A function to calculate the centroid of data. It should accept a 2D numpy array as input and return a 1D numpy array of the same length as the number of columns in the input, representing the centroid. The default will use the mean values.

rasterizedbool

If True, the dendrogram will be rasterized

Examples

You can change how the linkage matrix is calculated

>>> data = np.random.rand(10, 11)
>>> import marsilea as ma
>>> h = ma.Heatmap(data)
>>> h.add_dendrogram("left", method="ward", colors="green")
>>> h.render()

Only show the meta dendrogram to avoid crowded dendrogram

>>> h = ma.Heatmap(data)
>>> h.cut_rows(cut=[4, 8])
>>> h.add_dendrogram("left", add_base=False)
>>> h.render()

Change color for each base dendrogram

>>> h = ma.Heatmap(data)
>>> h.cut_rows(cut=[4, 8])
>>> h.add_dendrogram("left", colors=["#5470c6", "#91cc75", "#fac858"])
>>> h.render()

property col_cluster

If column dendrogram is added

cut_cols(cut, spacing=0.01)

Cut the main canvas by columns

Parameters:

cutarray-like

The index of your data to specify where to cut the canvas

spacingfloat, optional

The spacing between each cut, default is 0.01

Examples

Cut the canvas by the index

>>> data = np.random.rand(10, 11)
>>> import marsilea as ma
>>> h = ma.Heatmap(data)
>>> h.cut_cols([4, 8])
>>> h.render()

cut_rows(cut, spacing=0.01)

Cut the main canvas by rows

Parameters:

cutarray-like

The index of your data to specify where to cut the canvas

spacingfloat, optional

The spacing between each cut, default is 0.01

Examples

Cut the canvas by the index

>>> data = np.random.rand(10, 11)
>>> import marsilea as ma
>>> h = ma.Heatmap(data)
>>> h.cut_rows([4, 8])
>>> h.render()

get_col_linkage()

Return the linkage matrix of column dendrogram

If the canvas is not split, the linkage matrix will be returned; otherwise, a dictionary of linkage matrix will be returned, the key is either index or the name of each chunk.

get_deform()

Return the deformation object of the cluster data

get_row_linkage()

Return the linkage matrix of row dendrogram

If the canvas is not split, the linkage matrix will be returned; otherwise, a dictionary of linkage matrix will be returned, the key is either index or the name of each chunk.

group_cols(group, order=None, spacing=0.01)

Group columns into chunks

Parameters:

grouparray-like

The group of each column

orderarray-like, optional

The order of the unique groups

spacingfloat, optional

The spacing between each split chunks, default is 0.01

Examples

Group columns by the unique labels

>>> data = np.random.rand(11, 10)
>>> import marsilea as ma
>>> h = ma.Heatmap(data)
>>> labels = ["A", "B", "C", "A", "B", "C", "A", "B", "C", "A"]
>>> h.group_cols(labels, order=["A", "B", "C"])
>>> h.add_top(ma.plotter.Labels(labels), pad=0.1)
>>> h.render()

group_rows(group, order=None, spacing=0.01)

Group rows into chunks

Parameters:

grouparray-like

The group of each row

orderarray-like, optional

The order of the unique groups

spacingfloat, optional

The spacing between each split chunks, default is 0.01

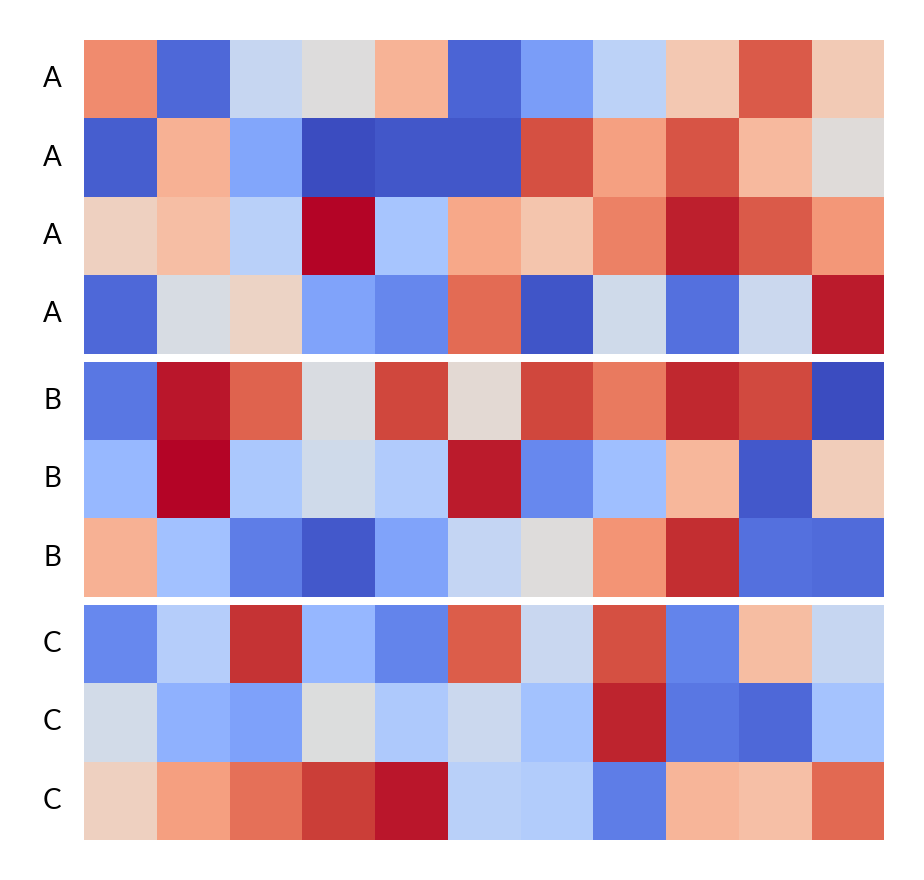

Examples

Group rows by the unique labels

>>> data = np.random.rand(10, 11)
>>> import marsilea as ma
>>> h = ma.Heatmap(data)
>>> labels = ["A", "B", "C", "A", "B", "C", "A", "B", "C", "A"]
>>> h.group_rows(labels, order=["A", "B", "C"])
>>> h.add_left(ma.plotter.Labels(labels), pad=0.1)
>>> h.render()

hsplit(cut=None, labels=None, order=None, spacing=0.01)

Split the main canvas horizontally

Deprecated since version 0.5.0: Use cut_rows() or group_rows() instead

Parameters:

cutarray-like, optional

The index of your data to specify where to split the canvas

labelsarray-like, optional

The labels of your data, must be the same length as the data

orderarray-like, optional

The order of the unique labels

spacingfloat, optional

The spacing between each split chunks, default is 0.01

Examples

Split the canvas by the unique labels

>>> data = np.random.rand(10, 11)
>>> import marsilea as ma
>>> h = ma.Heatmap(data)
>>> labels = ["A", "B", "C", "A", "B", "C", "A", "B", "C", "A"]
>>> h.hsplit(labels=labels, order=["A", "B", "C"])
>>> h.add_left(ma.plotter.Labels(labels), pad=.1)
>>> h.render()

Split the canvas by the index

>>> h = ma.Heatmap(data)
>>> h.hsplit(cut=[4, 8])
>>> h.render()

property row_cluster

If row dendrogram is added

vsplit(cut=None, labels=None, order=None, spacing=0.01)

Split the main canvas vertically

Deprecated since version 0.5.0: Use cut_cols() or group_cols() instead

Parameters:

cutarray-like, optional

The index of your data to specify where to split the canvas

labelsarray-like, optional

The labels of your data, must be the same length as the data

orderarray-like, optional

The order of the unique labels

spacingfloat, optional

The spacing between each split chunks, default is 0.01

Examples

Split the canvas by the unique labels

>>> data = np.random.rand(10, 11)
>>> import marsilea as ma
>>> h = ma.Heatmap(data)
>>> labels = ["A", "B", "C", "A", "B", "C", "A", "B", "C", "A", "B"]
>>> h.vsplit(labels=labels, order=["A", "B", "C"])
>>> h.add_top(ma.plotter.Labels(labels), pad=.1)
>>> h.render()

Split the canvas by the index

>>> h = ma.Heatmap(data)
>>> h.vsplit(cut=[4, 8])
>>> h.render()
