marsilea.plotter.FixedChunk

class FixedChunk(texts, fill_colors=None, *, align=None, ratio=None, props=None, padding=8, underline=False, bordercolor=None, borderwidth=None, borderstyle=None, label=None, label_loc=None, label_props=None, **options)

Bases: _ChunkBase

Mark groups with fixed order

Parameters:

textsarray of str

The label for each chunk

fill_colorscolor, array of color

The color used as background color for each chunk

ratioarray of int

To span chunks on more than one chunk.

borderwidth, bordercolor, borderstyle

Control the style of border For borderstyle, see linestyles

propsdict

See matplotlib.text.Text

rotationfloat

How many to rotate the text

paddingfloat

The buffer space between text and the adjcent plots, in points unit

labelstr

The label of the plot

label_loc{‘right’, ‘left’, ‘top’, ‘bottom’}

The location of the label

label_propsdict

The label properties

See also

Chunk

Examples

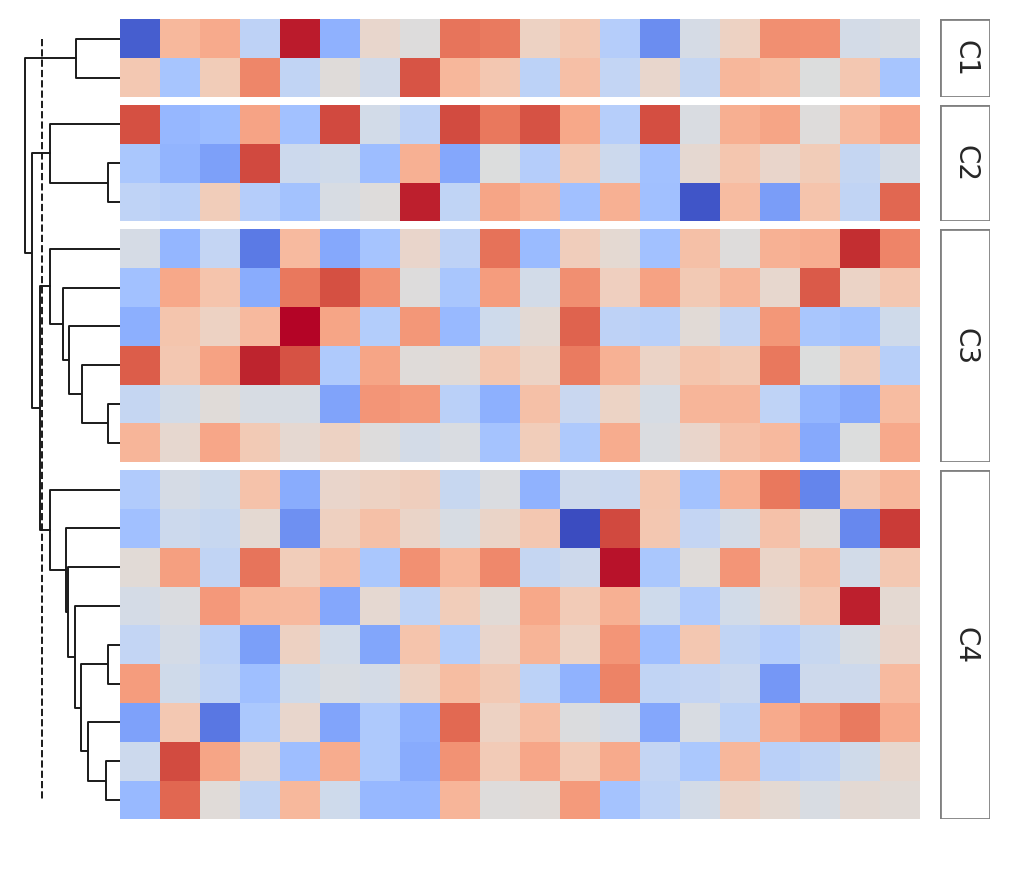

The fixed chunk will not be reordered by the cluster results.

>>> import marsilea as ma
>>> from marsilea.plotter import FixedChunk
>>> matrix = np.random.randn(20, 20)
>>> h = ma.Heatmap(matrix)
>>> chunk = ["C1", "C2", "C3", "C4"]
>>> labels = np.random.choice(chunk, size=20)
>>> h.group_rows(labels, order=chunk)
>>> h.add_right(FixedChunk(chunk, bordercolor="gray"), pad=0.1)
>>> h.add_dendrogram("left")
>>> h.render()

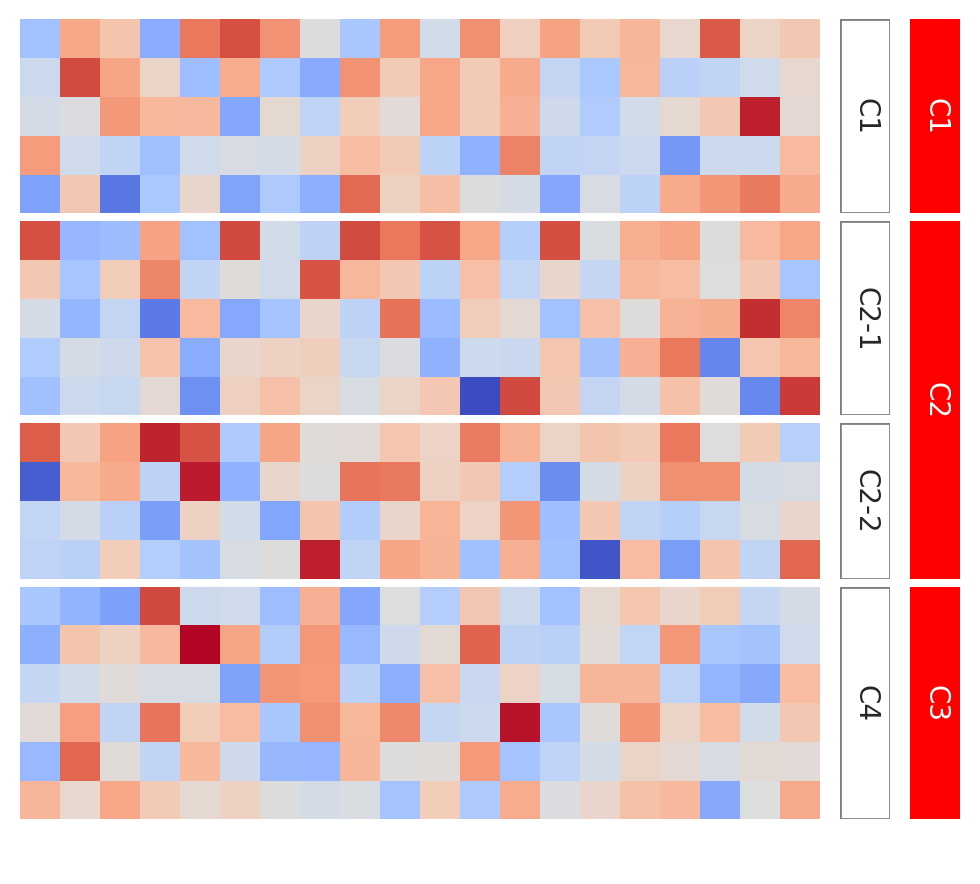

You can span a chunk on more than one chunk.

>>> h = ma.Heatmap(matrix)
>>> chunk = ["C1", "C2-1", "C2-2", "C4"]
>>> labels = np.random.choice(chunk, size=20)
>>> h.group_rows(labels, order=chunk)
>>> h.add_right(FixedChunk(chunk, bordercolor="gray"), pad=0.1)
>>> h.add_right(
...     FixedChunk(
...         ["C1", "C2", "C3"],
...         fill_colors="red",
...         ratio=[1, 2, 1],
...     ),
...     pad=0.1,
... )
>>> h.render()
