Sequence Alignment Plot

from collections import Counter
import numpy as np
import pandas as pd

import marsilea as ma
import matplotlib as mpl

Load data

seq = ma.load_data("seq_align")
seq = seq.iloc[:, 130:175]

Calculate the height of each amino acid. See https://en.wikipedia.org/wiki/Sequence_logo

collect = []
for _, col in seq.items():
    collect.append(Counter(col))

hm = pd.DataFrame(collect)
del hm["-"]
hm = hm.T.fillna(0.0)
hm.columns = seq.columns
hm /= hm.sum(axis=0)

n = hm.shape[1]
s = 20
En = (1 / np.log(2)) * ((s - 1) / (2 * n))

heights = []
for _, col in hm.items():
    H = -(np.log2(col) * col).sum()
    R = np.log2(20) - (H + En)
    heights.append(col * R)

logo = pd.DataFrame(heights).T

/home/docs/checkouts/readthedocs.org/user_builds/marsilea/envs/v0.3.5/lib/python3.10/site-packages/pandas/core/arraylike.py:399: RuntimeWarning: divide by zero encountered in log2
  result = getattr(ufunc, method)(*inputs, **kwargs)

Prepare color palette and data

color_encode = {
    'A': '#f76ab4',
    'C': '#ff7f00',
    'D': '#e41a1c',
    'E': '#e41a1c',
    'F': '#84380b',
    'G': '#f76ab4',
    'H': '#3c58e5',
    'I': '#12ab0d',
    'K': '#3c58e5',
    'L': '#12ab0d',
    'M': '#12ab0d',
    'N': '#972aa8',
    'P': '#12ab0d',
    'Q': '#972aa8',
    'R': '#3c58e5',
    'S': '#ff7f00',
    'T': '#ff7f00',
    'V': '#12ab0d',
    'W': '#84380b',
    'Y': '#84380b',
    '-': 'white'
    }

max_aa = []
freq = []

for _, col in hm.items():
    ix = np.argmax(col)
    max_aa.append(hm.index[ix])
    freq.append(col[ix])

position = []
mock_ticks = []
for i in seq.columns:
    if int(i) % 10 == 0:
        position.append(i)
        mock_ticks.append("^")
    else:
        position.append("")
        mock_ticks.append("")

/home/docs/checkouts/readthedocs.org/user_builds/marsilea/checkouts/v0.3.5/docs/examples/Gallery/plot_seqalign.py:85: FutureWarning: Series.__getitem__ treating keys as positions is deprecated. In a future version, integer keys will always be treated as labels (consistent with DataFrame behavior). To access a value by position, use `ser.iloc[pos]`
  freq.append(col[ix])

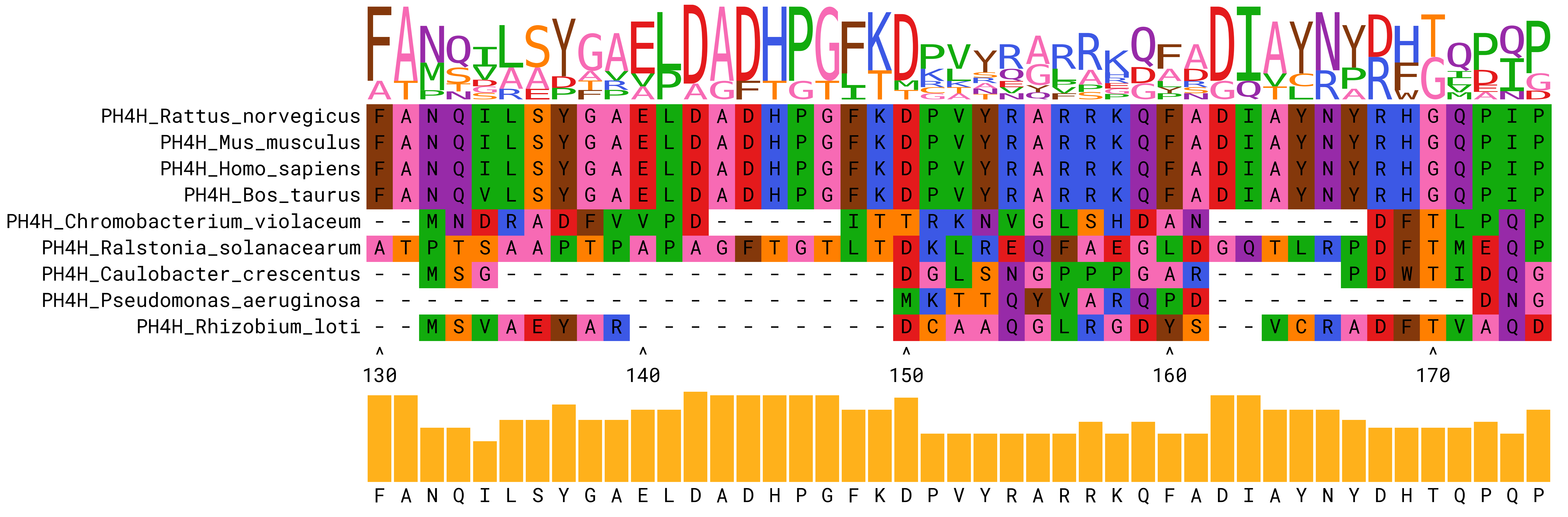

Plot

height = 5
width = height * seq.shape[1] / seq.shape[0]

ch = ma.CatHeatmap(seq.to_numpy(), palette=color_encode, height=height, width=width)
ch.add_layer(ma.plotter.TextMesh(seq.to_numpy()))
ch.add_top(ma.plotter.SeqLogo(logo, color_encode=color_encode), pad=.1, size=2)
ch.add_left(ma.plotter.Labels(seq.index), pad=.1)
ch.add_bottom(ma.plotter.Labels(mock_ticks, rotation=0), pad=.1)
ch.add_bottom(ma.plotter.Labels(position, rotation=0))
ch.add_bottom(ma.plotter.Numbers(freq, width=.9, color="#FFB11B", show_value=False),
              name="freq_bar", size=2)
ch.add_bottom(ma.plotter.Labels(max_aa, rotation=0), pad=.1)
ch.render()

ch.get_ax("freq_bar").set_axis_off()
