Fat content in cooking oils

This example shows how to apply x-layout on statistical plots.

import marsilea as ma
import marsilea.plotter as mp

import mpl_fontkit as fk

fk.install_fontawesome(verbose=False)
fk.install("Lato", verbose=False)

Load data

oils = ma.load_data('cooking_oils')

red = "#cd442a"
yellow = "#f0bd00"
green = "#7e9437"
gray = "#eee"

mapper = {0: "\uf58a", 1: "\uf11a", 2: "\uf567"}
cmapper = {0: '#609966', 1: '#DC8449', 2: '#F16767'}
flavour = [mapper[i] for i in oils['flavour'].values]
flavour_colors = [cmapper[i] for i in oils['flavour'].values]
fat_content = oils[['saturated', 'polyunsaturated (omega 3 & 6)',
                    'monounsaturated', 'other fat']]

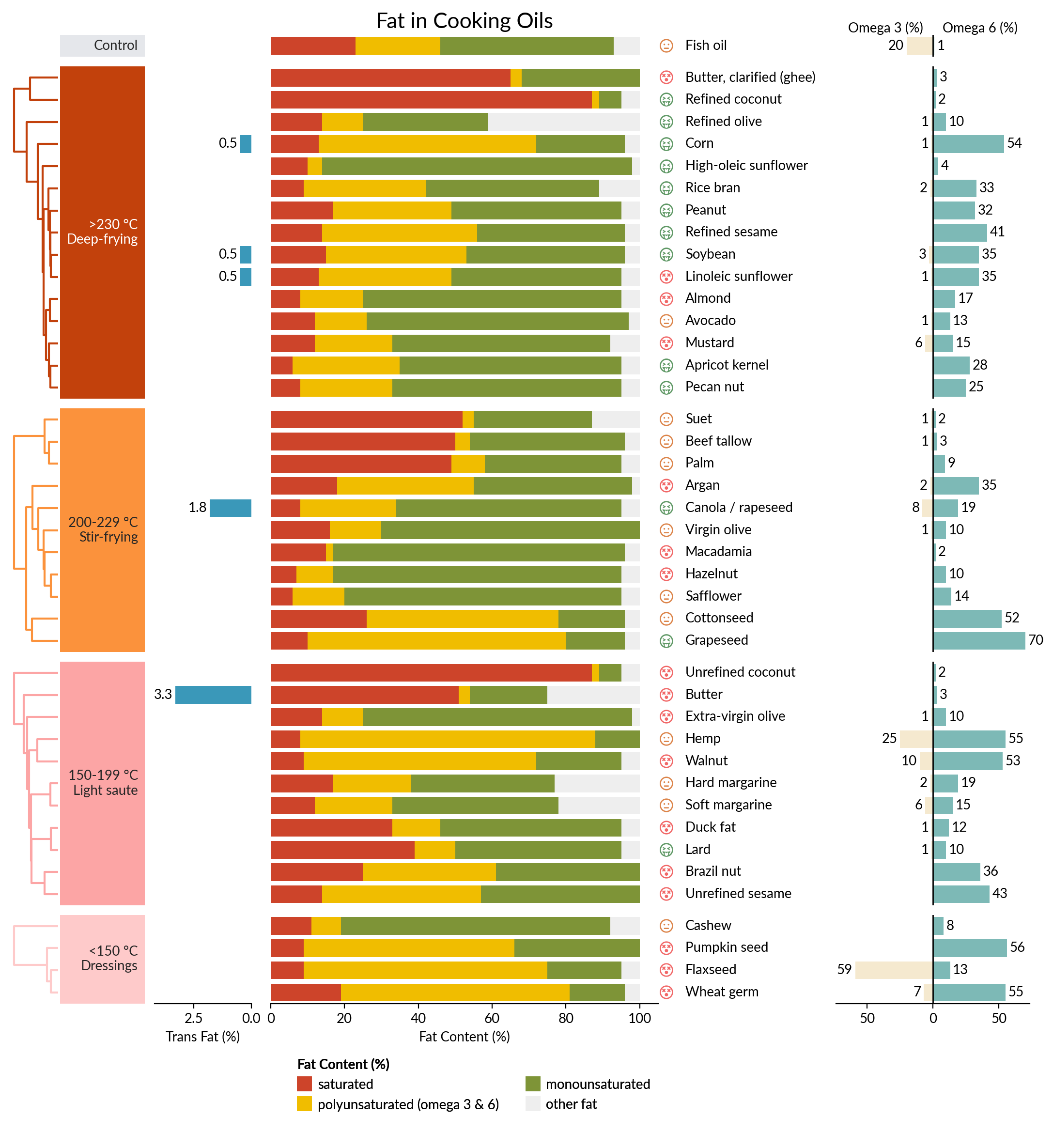

Visualize the oil contents

cb = ma.ClusterBoard(fat_content.to_numpy(), height=10)
cb.add_layer(
    mp.StackBar(fat_content.T * 100, colors=[red, yellow, green, gray],
                width=.8, orient="h", label="Fat Content (%)",
                legend_kws={'ncol': 2, 'fontsize': 10}))

fmt = lambda x: f"{x:.1f}" if x > 0 else ""
cb.add_left(
    mp.Numbers(oils['trans fat'] * 100, fmt=fmt,
               label="Trans Fat (%)", color="#3A98B9"),
    pad=.2, name="trans fat")

cb.add_right(
    mp.Labels(flavour, fontfamily="Font Awesome 6 Free",
              text_props={'color': flavour_colors}))

cb.add_right(
    mp.Labels(oils.index.str.capitalize()), pad=.1)

fmt = lambda x: f"{int(x)}" if x > 0 else ""
cb.add_right(
    ma.plotter.CenterBar((oils[['omega 3', 'omega 6']] * 100).astype(int),
                         names=["Omega 3 (%)", "Omega 6 (%)"],
                         colors=["#7DB9B6", "#F5E9CF"],
                         fmt=fmt, show_value=True),
    size=2, pad=.2)

order = ["Control", ">230 °C (Deep-frying)", "200-229 °C (Stir-frying)",
         "150-199 °C (Light saute)", "<150 °C (Dressings)"]
cb.hsplit(labels=oils['cooking conditions'], order=order)
colors = ["#e5e7eb", "#c2410c", "#fb923c", "#fca5a5", "#fecaca"]

chunk_text = ["Control", ">230 °C\nDeep-frying", "200-229 °C\nStir-frying",
              "150-199 °C\nLight saute", "<150 °C\nDressings"]
cb.add_left(
    ma.plotter.Chunk(chunk_text, colors, rotation=0, padding=10),
    pad=.1)

cb.add_dendrogram("left", add_meta=False, colors=colors,
                  linewidth=1.5, size=.5, pad=.02)
cb.add_title(top="Fat in Cooking Oils", fontsize=16)
cb.add_legends("bottom", pad=.3)
cb.render()

axes = cb.get_ax("trans fat")
for ax in axes:
    ax.set_xlim(4.2, 0)
