Add/Remove border#
import numpy as np
import marsilea as ma
data = np.random.randint(0, 10, (10, 10))
To add a border
from matplotlib.patches import Rectangle
h = ma.Heatmap(data, width=3, height=3)
h.render()
ax = h.get_main_ax()
rect = Rectangle((0, 0), 1, 1, ec="green", fc="none", transform=ax.transAxes)
ax.add_artist(rect)

<matplotlib.patches.Rectangle object at 0x7da928d1a600>

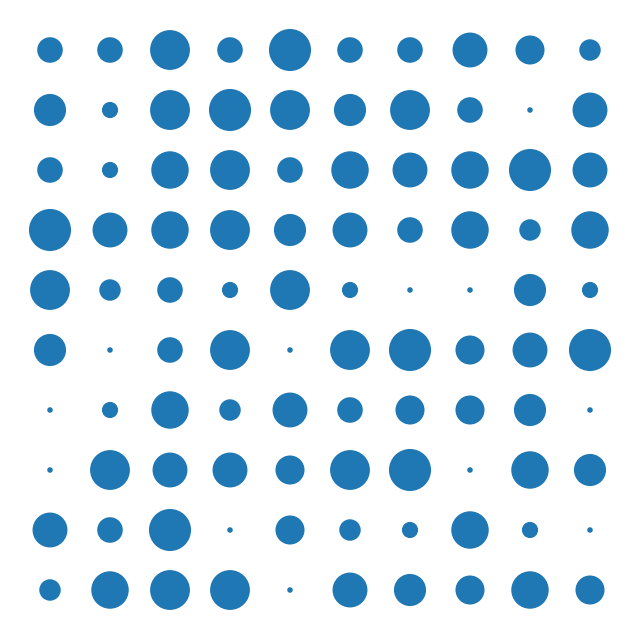

To remove the border
h = ma.SizedHeatmap(data, width=3, height=3)
h.render()
main_ax = h.get_main_ax()
for spine in main_ax.spines.values():
spine.set_visible(False)

Total running time of the script: (0 minutes 0.158 seconds)
