marsilea.plotter.Area

class Area(data, color=None, add_outline=True, alpha=0.4, linecolor=None, linewidth=1, group_kws=None, label=None, label_loc=None, label_props=None, **kwargs)

Bases: StatsBase

Area plot

Parameters:

dataarray-like

The data to be plotted.

colorcolor-like

The color of the area

add_outlinebool

Whether to add outline to the area

alphafloat

The transparency of the area

linecolorcolor-like

The color of the outline

linewidthfloat

The width of the outline

group_kwsdict

The configurations that apply to each group

**kwargs

Additional configurations for the area plot, see matplotlib.pyplot.fill_between()

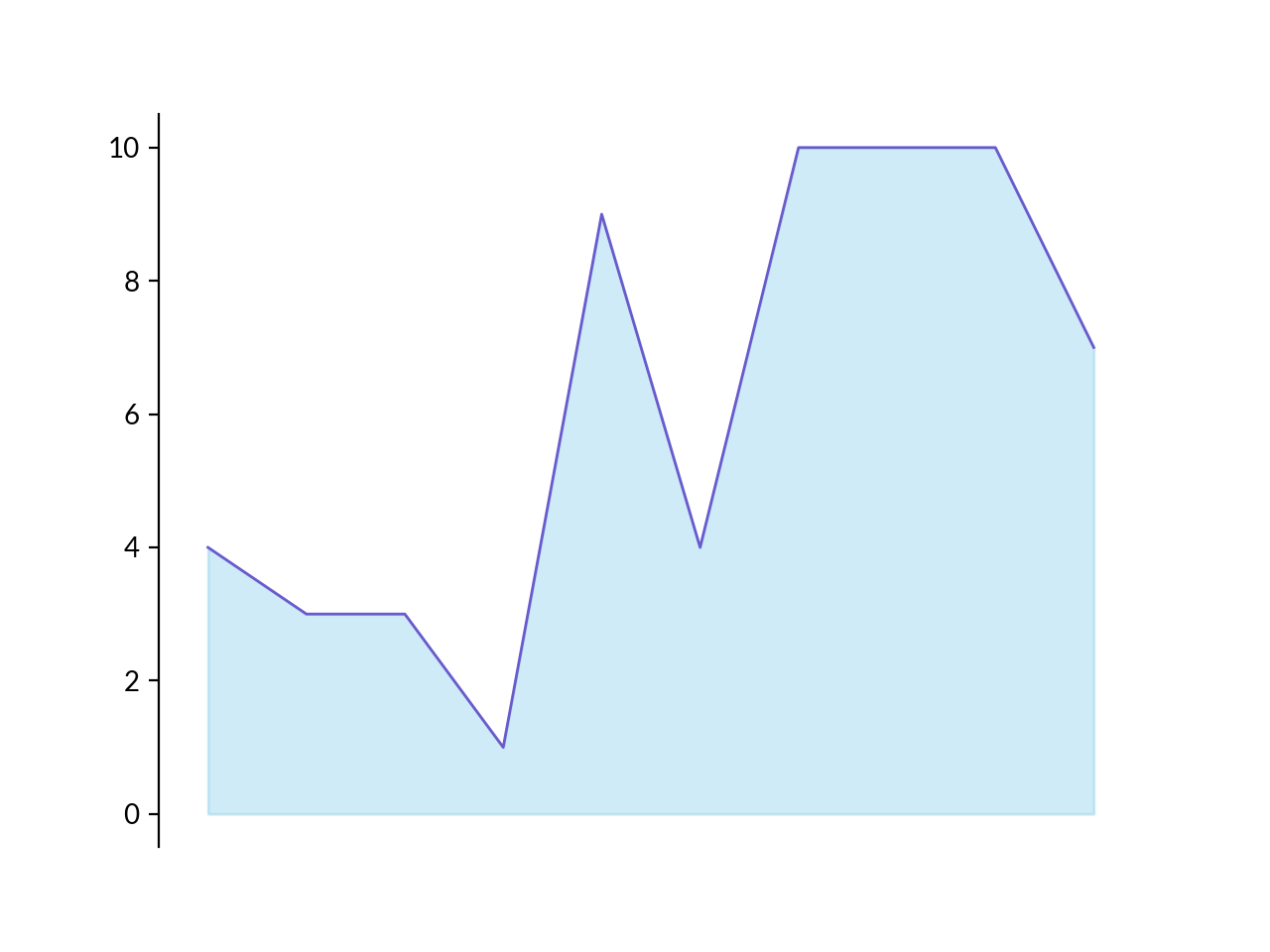

Examples

import numpy as np
import matplotlib.pyplot as plt

from marsilea.plotter import Area

_, ax = plt.subplots()
data = np.random.randint(0, 10, 10) + 1
Area(data).render(ax)
