marsilea.plotter.SizedMesh

class SizedMesh(size, color=None, cmap=None, norm=None, vmin=None, vmax=None, alpha=None, center=None, sizes=(1, 200), size_norm=None, edgecolor=None, linewidth=1, frameon=True, palette=None, marker='o', label=None, label_loc=None, label_props=None, legend=True, size_legend_kws=None, color_legend_kws=None, **kwargs)

Bases: MeshBase

Mesh for sized elements

Note

If encode color as categorical data, palette must be used to assign color for each category.

Parameters:

size2d array

Control the radius of circles, must be numeric

color: color-like or 2d array

The color of circles, could be numeric / categorical matrix If using one color name, all circles will have the same color.

cmapstr or matplotlib.colors.Colormap

The colormap used to map the value to the color

normmatplotlib.colors.Normalize

A Normalize instance to map data

vmin, vmaxnumber, optional

Value to determine the value mapping behavior

centernumber, optional

The value to center on colormap, notice that this is different from seaborn; If set, a matplotlib.colors.TwoSlopeNorm will be used to center the colormap.

alphafloat

The transparency value

sizestuple of float

The range of the size of elements

size_normmatplotlib.colors.Normalize

A Normalize instance to map size

edgecolorcolor

The border color of each elements

linewidthfloat

The width of the border of each elements

frameonbool

Whether to draw a frame

palettedict

Use to map color if input categorical data

markerstr

See matplotlib.markers

labelstr

The label of the plot, only show if added to the side plot

label_loc{‘top’, ‘bottom’, ‘left’, ‘right’}

Where to add the label

label_propsdict

See matplotlib.text.Text

legendbool, default: True

Whether to add a legend

size_legend_kwsdict

Control the size legend, See legendkit.size_legend

color_legend_kwsdict

Control the color legend, See legendkit.colorart

kwargsdict

Pass to matplotlib.axes.Axes.scatter()

See also

marsilea.SizedHeatmap

Examples

>>> import marsilea as ma
>>> from marsilea.plotter import SizedMesh
>>> _, ax = plt.subplots(figsize=(5, .5))
>>> size, color = np.random.rand(1, 10), np.random.rand(1, 10)
>>> SizedMesh(size, color).render(ax)

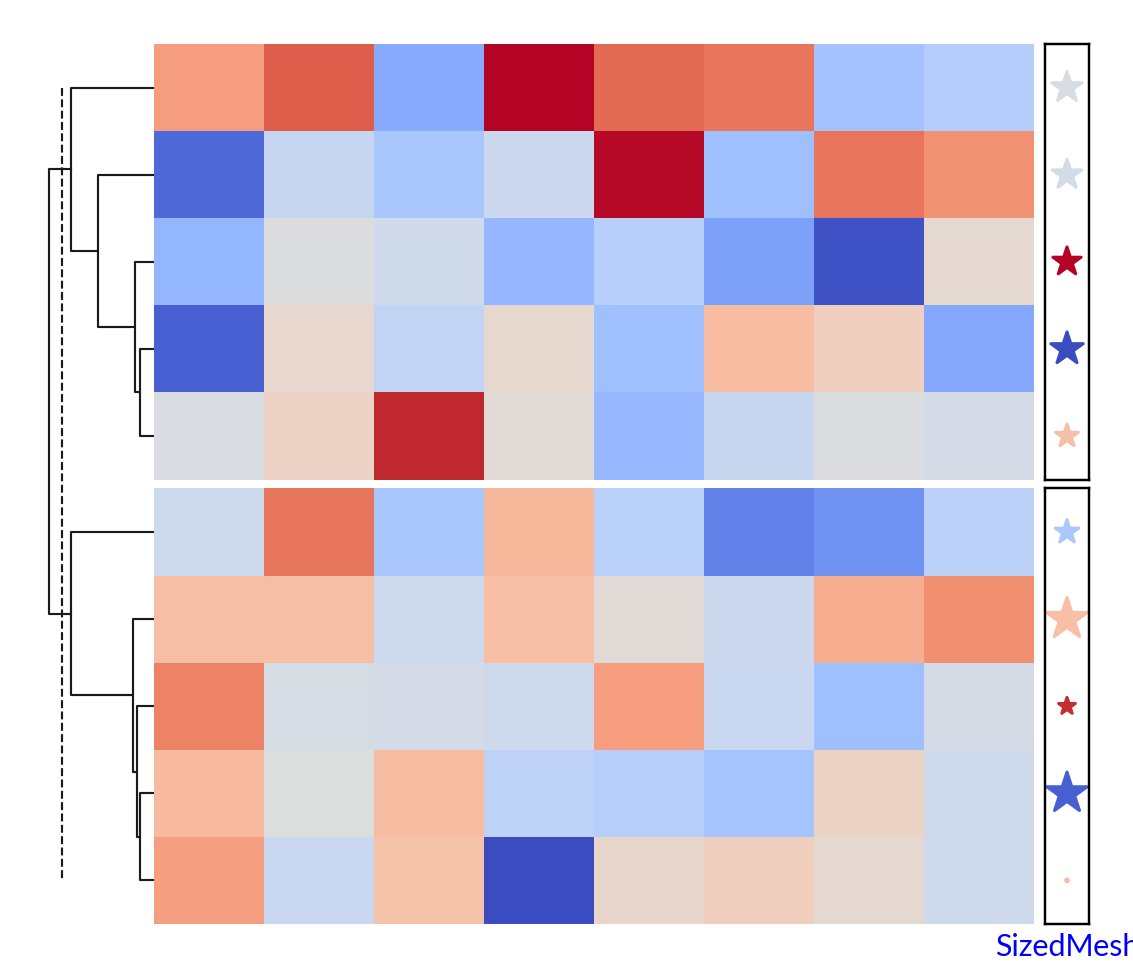

>>> h = ma.Heatmap(np.random.randn(10, 8))
>>> h.hsplit(cut=[5])
>>> h.add_dendrogram("left")
>>> mesh = SizedMesh(size, color, marker="*", label="SizedMesh")
>>> h.add_right(mesh, size=.2, pad=.05)
>>> h.render()

update_main_canvas_size()
