UpSet Plot#

UpSet Plot offers a powerful alternative to Venn diagrams when dealing with multiple sets, making it easier to visualize complex relationships among sets.

Note

Set A collection of unique objects.

Item An object in a set.

Cardinality The number of items in the subset.

Degree The number of sets that intersect with each other.

Data Input#

There are three ways to represents multiple sets:

A list of sets and their respective items.
A list of items and the sets they belong to.
A sets × items table, use 0 or 1 to indicate an item’s presence in a set.

The UpsetData simplifies working with set data, offering useful methods for querying information about various sets.

To demonstrate, we’ll use the Top 1000 movies from the IMDB database.

>>> from marsilea import load_data
>>> from marsilea.upset import UpsetData
>>> imdb = load_data('imdb')
>>> imdb = imdb.drop_duplicates('Title')
>>> upset_data = UpsetData.from_memberships(imdb.Genre.str.split(','))

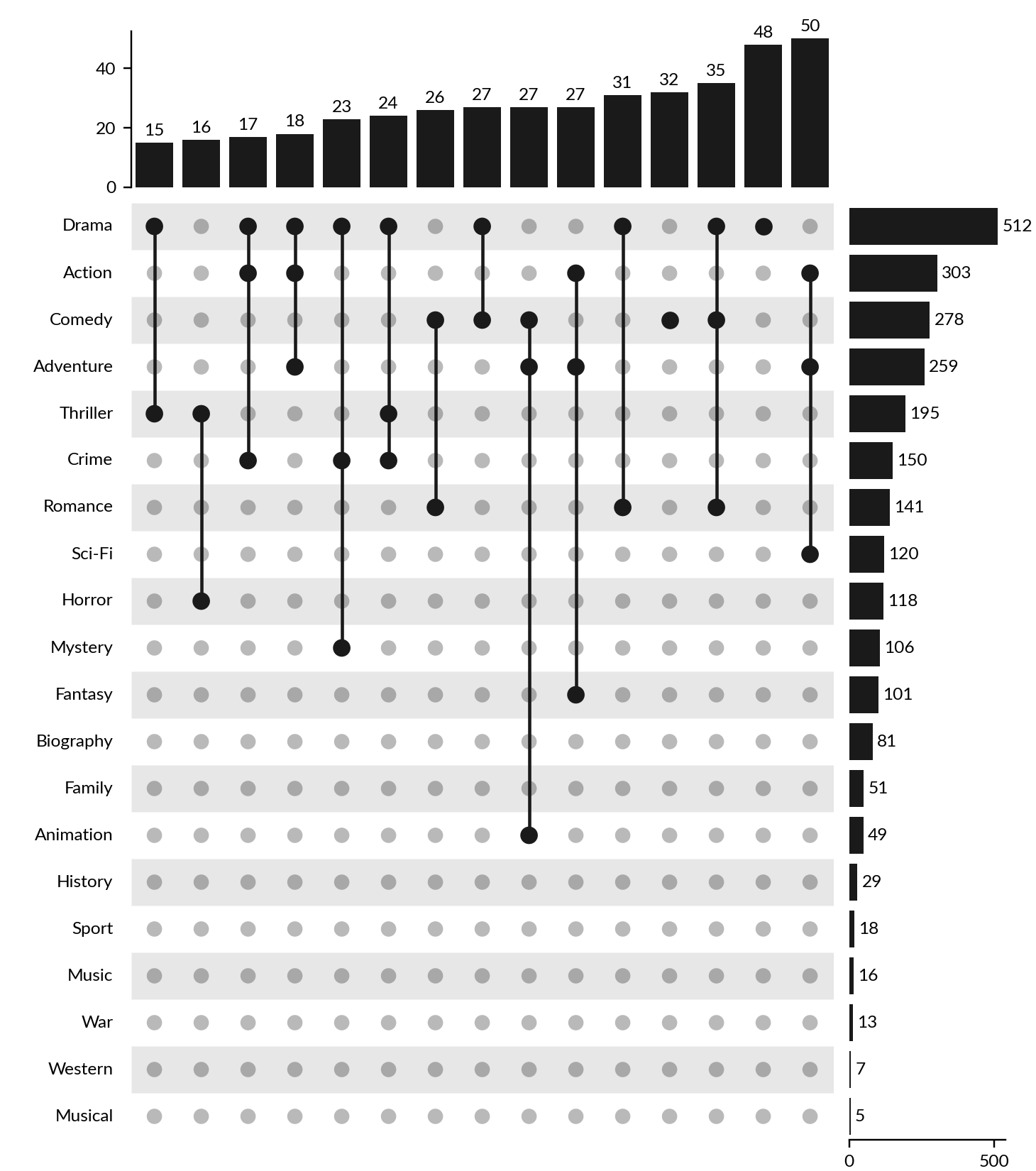

Creating an UpSet Plot#

The Upset in Marsilea can be used to create UpSet plot from UpsetData.

Like other visualizations in Marsilea, simply call the render() method to bring your plot to life.

>>> from marsilea.upset import Upset
>>> us = Upset(upset_data, min_cardinality=15)
>>> us.render()

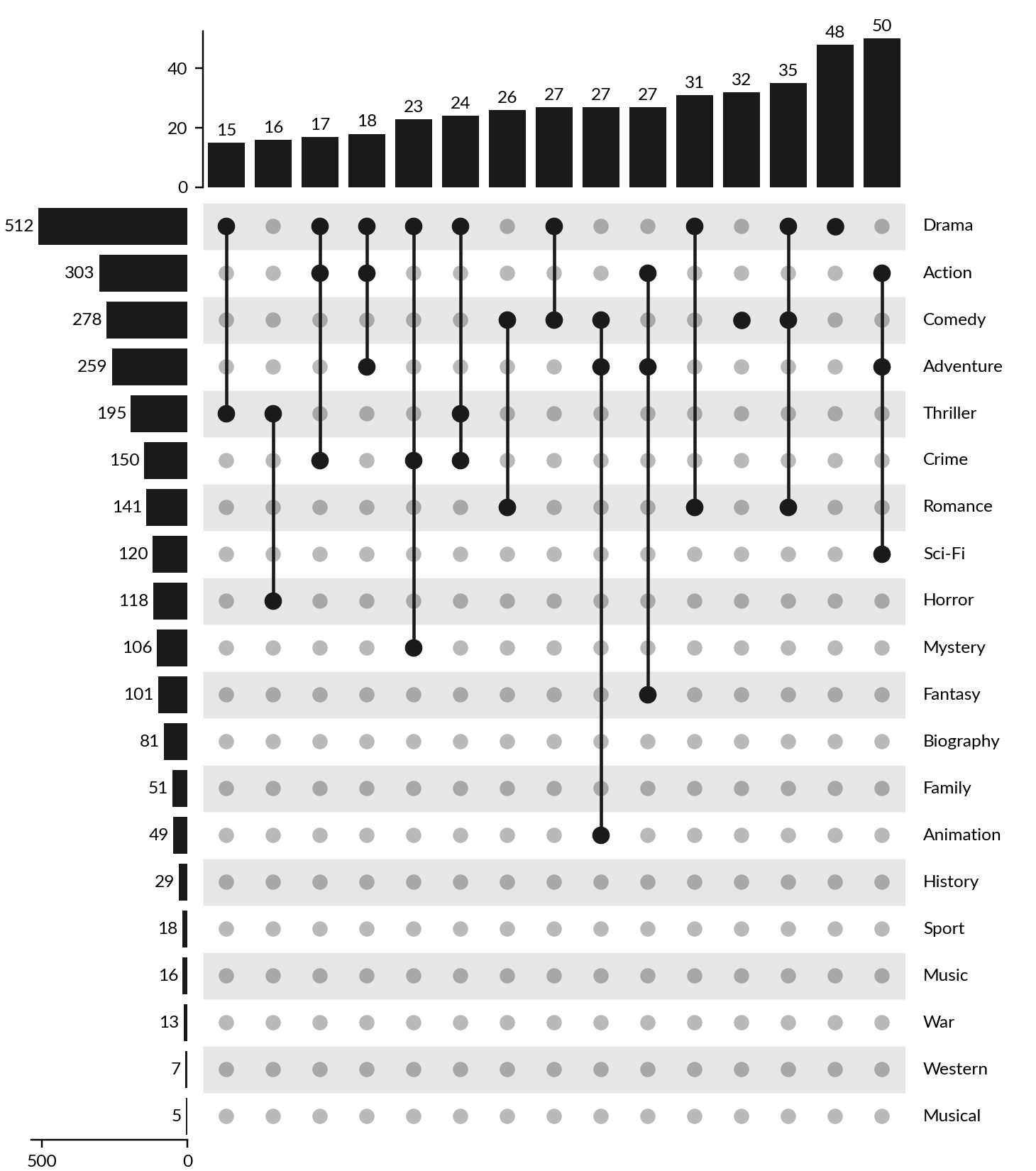

You may change the positions of components:

>>> us = Upset(upset_data, min_cardinality=15, add_labels="left",
...            add_sets_size="right")
>>> us.render()

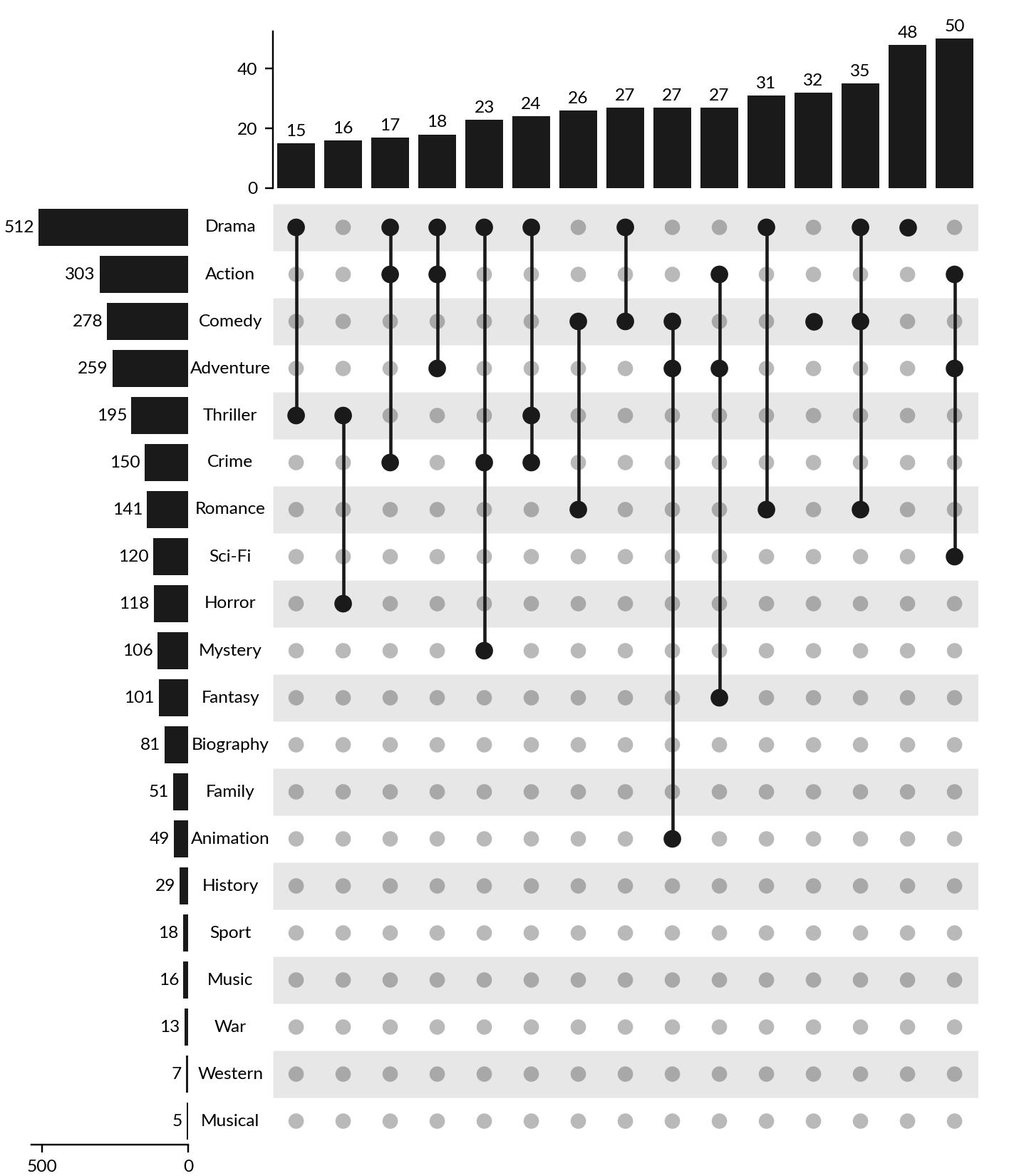

For finer control, you can add components manually:

>>> us = Upset(upset_data, min_cardinality=15, add_labels=False,
...            add_sets_size=False)
>>> us.add_sets_label(side="left", pad=0, align="center")
>>> us.add_sets_size(side="left", pad=0)
>>> us.render()

Highlighting specific sets#

To emphasize specific sets, use the highlight_subsets() method.

>>> us = Upset(upset_data, min_cardinality=15)
>>> us.highlight_subsets(facecolor='red', label="25~40",
...                      min_cardinality=25, max_cardinality=40)
>>> us.highlight_subsets(edgecolor='green', label="20~30",
...                      min_cardinality=20, max_cardinality=30)
>>> us.add_legends()
>>> us.render()

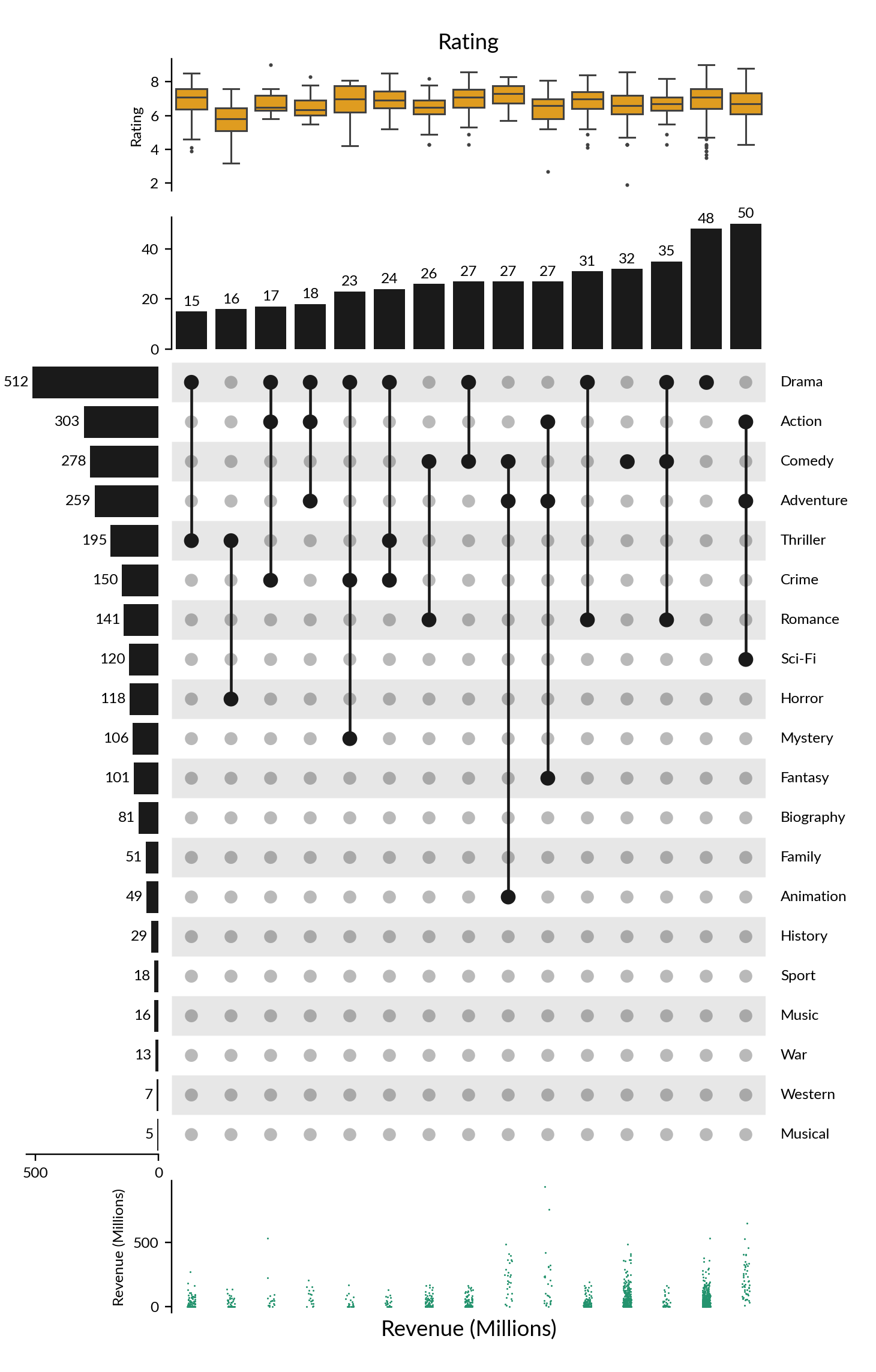

Visualizing Set and Item Attributes#

UpSet plots not only showcase intersections but also display the distribution of different attributes.

>>> items_attrs = imdb[['Title', 'Rating', 'Revenue (Millions)']].set_index('Title')
>>> imdb_data = UpsetData.from_memberships(imdb.Genre.str.split(','),
...                                        items_names=imdb['Title'], items_attrs=items_attrs)
>>> us = Upset(imdb_data, min_cardinality=15)
>>> us.add_items_attr("top", "Rating", "box", pad=.2, plot_kws=dict(color="orange", linewidth=1, fliersize=1))
>>> us.add_title(top="Rating")
>>> us.add_items_attr("bottom", "Revenue (Millions)", "strip", pad=.2, plot_kws=dict(size=1, color="#24936E"))
>>> us.add_title(bottom="Revenue (Millions)")
>>> us.render()
